K9 – RC Conversion Kit for TAMIYA 1/35 Leopard 2 A5/A6, with MTC-2, ACU and GSU
Price: US$209
Status: Out of Stock
Remarks:
– The kit is also suitable for Hobby Boss series Leopard2A5/A6, including 2A6M (82458), 2E (82432), 2A5/A6NL(82423), 2A5DK (82405), Strv122 (82404), 2A6EX (82403), 2A5/A6 (82402). It is NOT suitable for 24A (82401).
– The main gun LED is designed for A6 tank. Please specify when order if you want a A4/A5/Stv122 tank LED.

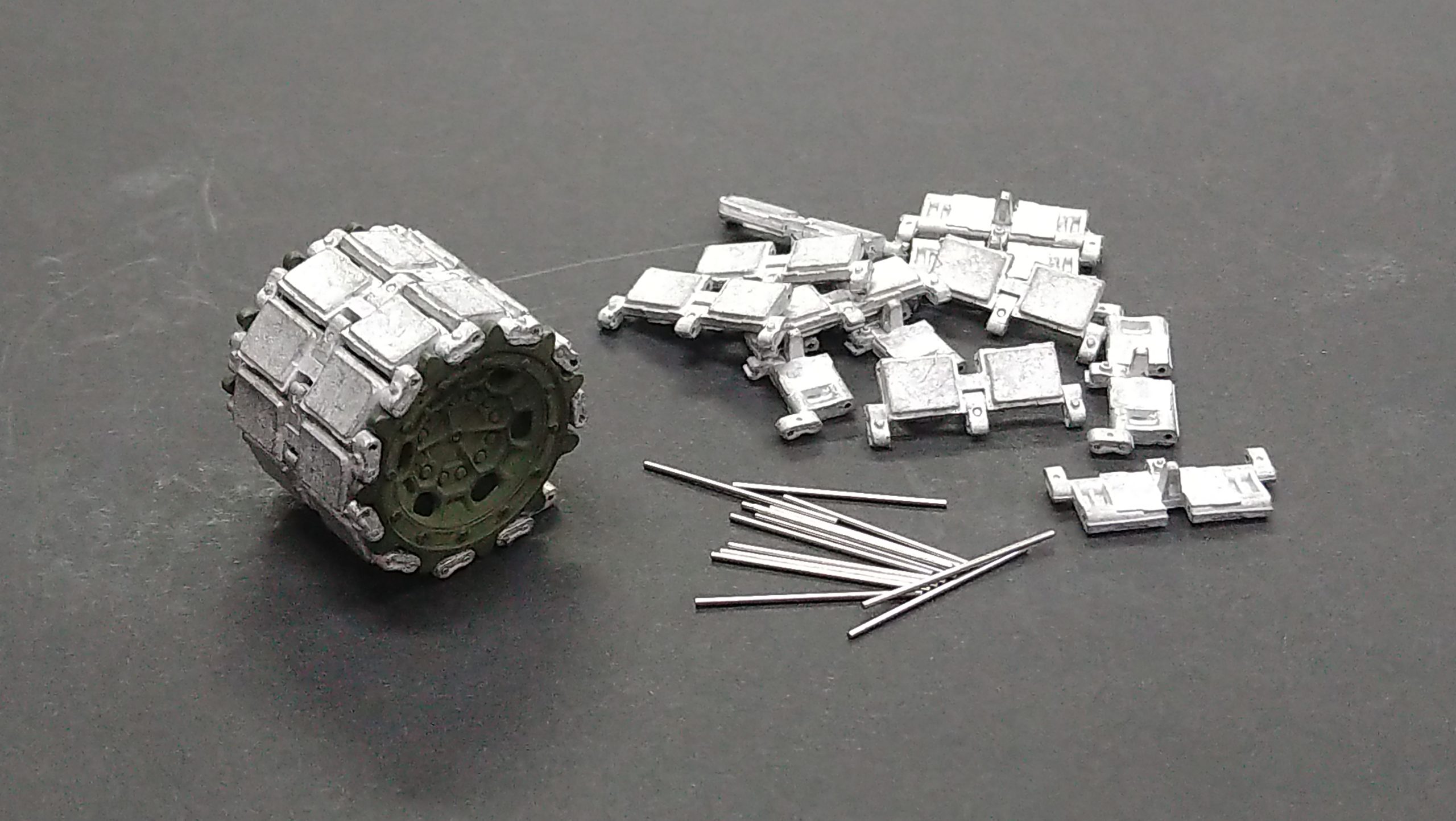

– Metal track is optional, but highly recommended. TAMIYA plastic tracks are too soft and detach easily.
Features:
– Constructed by high precision metal parts
– Twin 180 carbon brush motor
– Metal gearbox with harden stainless steel gears
– Power by 2 Cell Lipo battery
– Workable suspensions
– 360 deg turret rotation
– Gun elevation servo
– Gun recoil servo
– GSU (gun stabilizer unit), with engine deck sensor. Gun rise automatically over engine deck position.

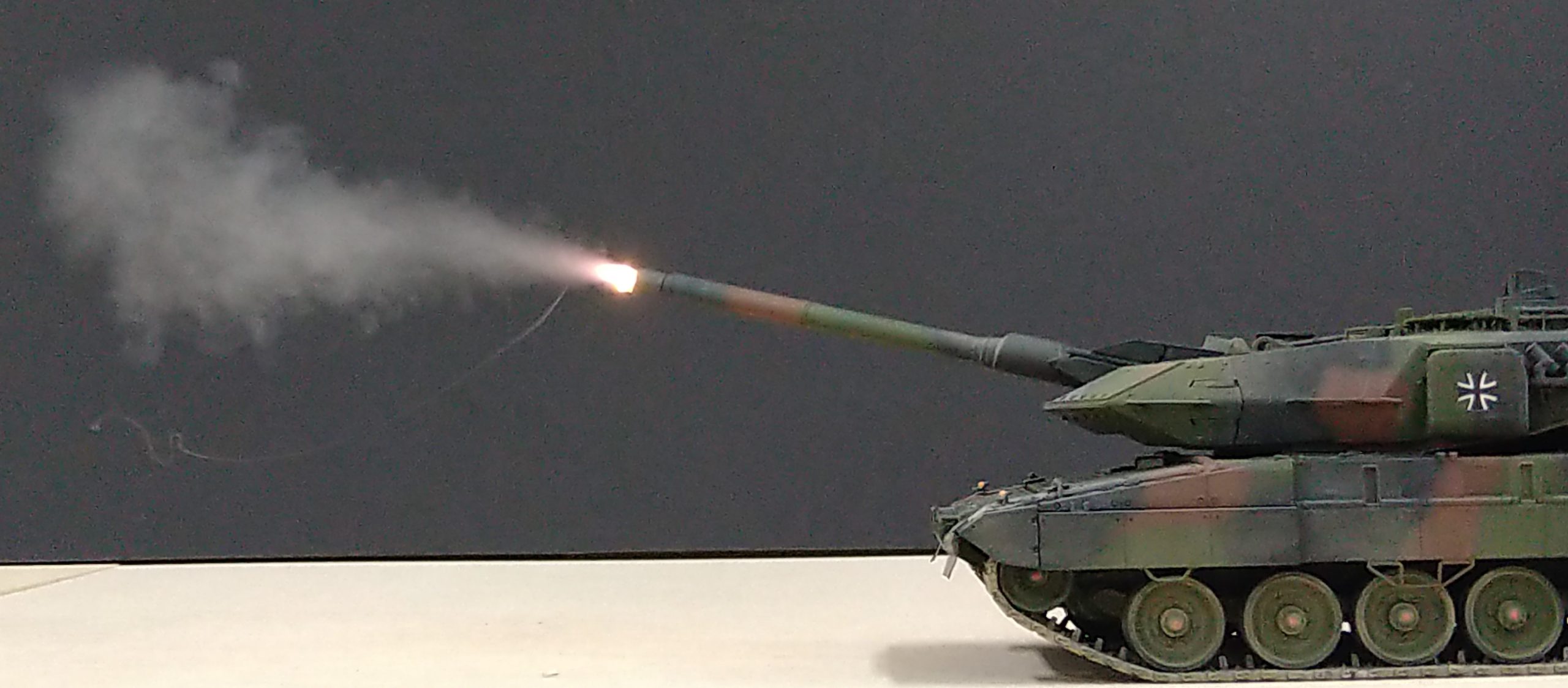

– Ultra bright LED for main gun and machine gun flashes
– Main gun led will explode during recoil
– 22KHz high quality digital recorded sound effects, including engine start, running and stop sounds, main gun and machine gun firing sounds
– Engine sounds changes according to speed
Kit contains:

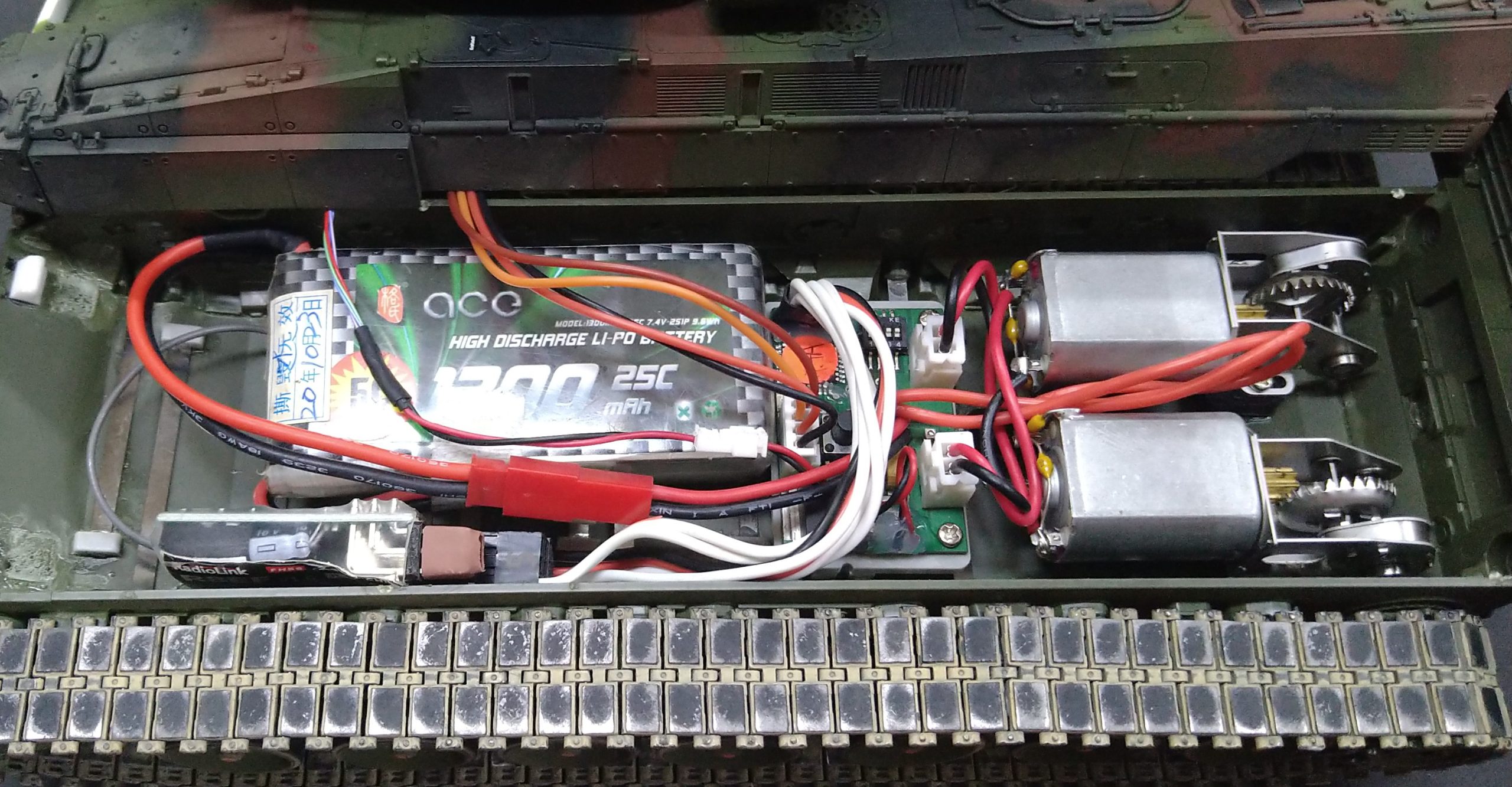

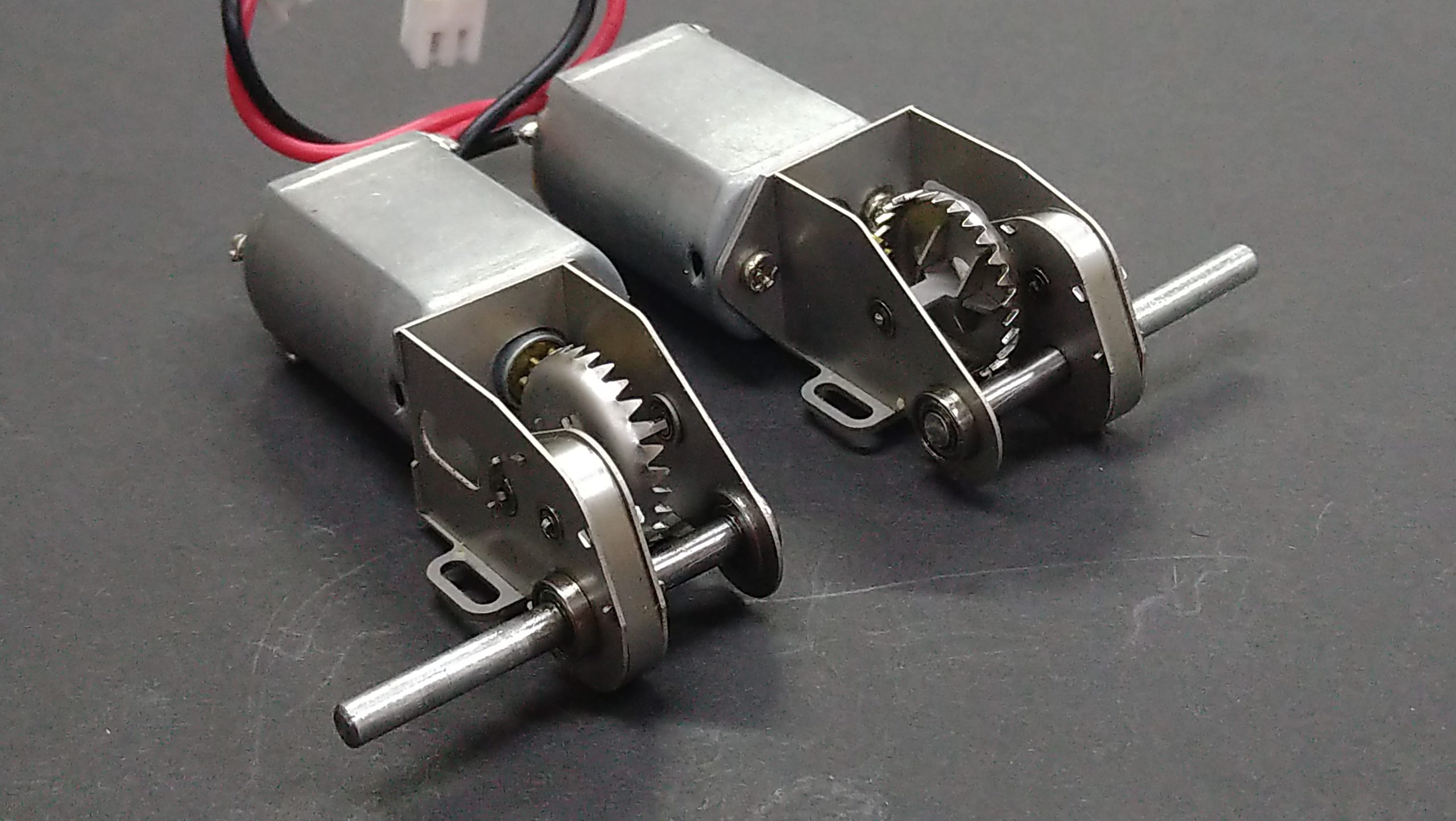

– Metal gear box with twin 180 carbon brush motors and sprocket mounts
– MTC-2 mini tank controller

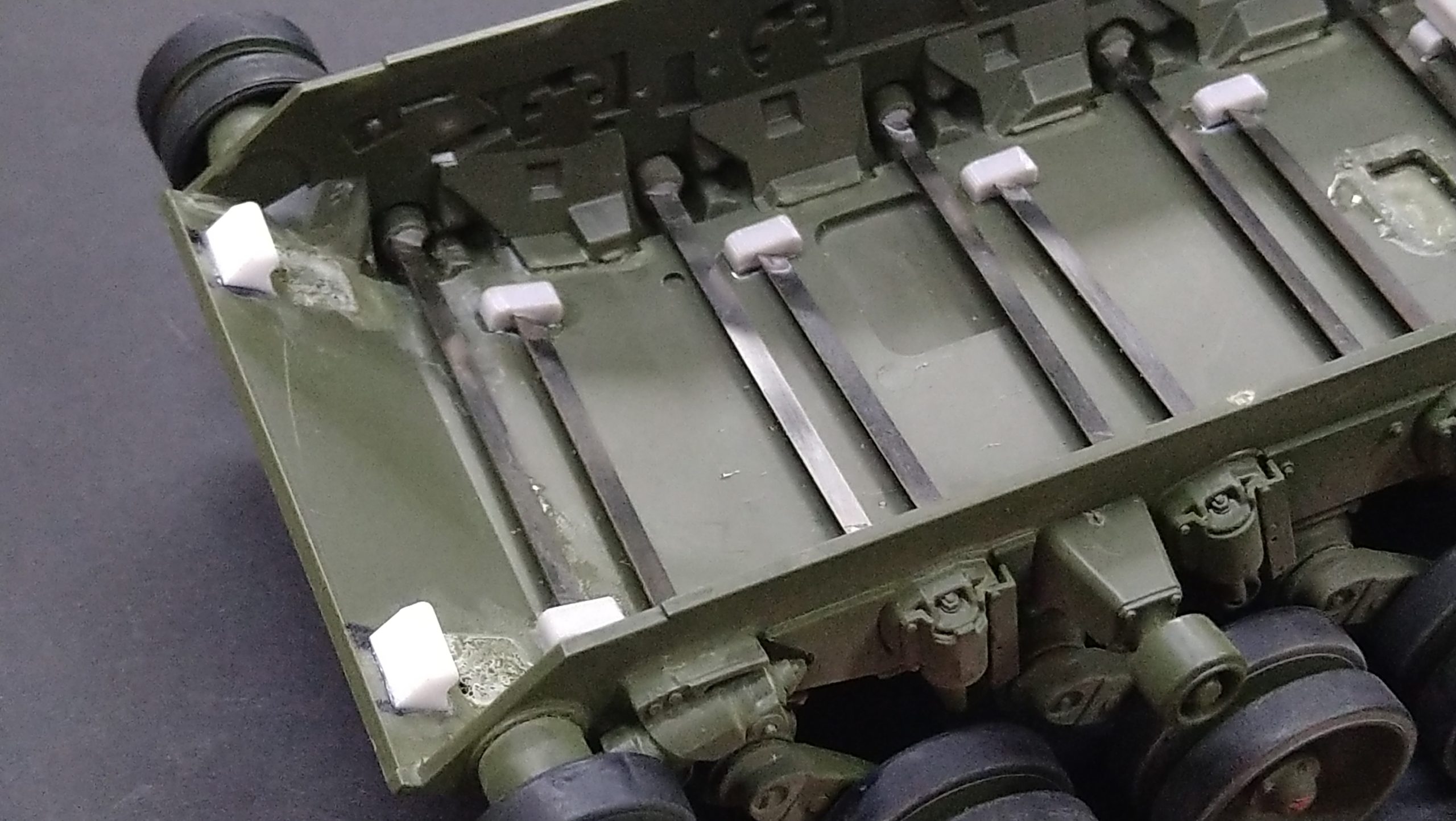

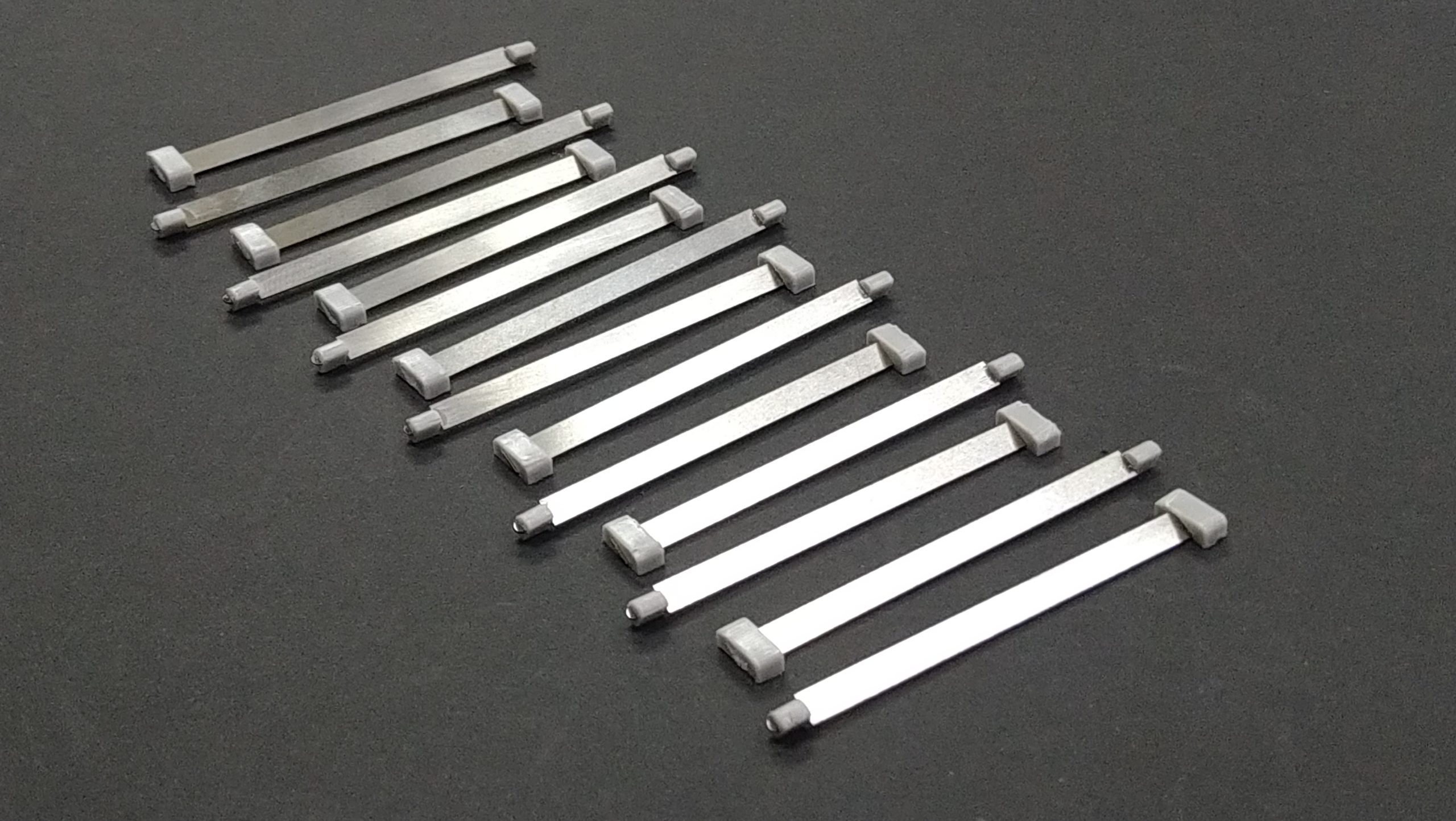

– Torsion bars set for workable suspension

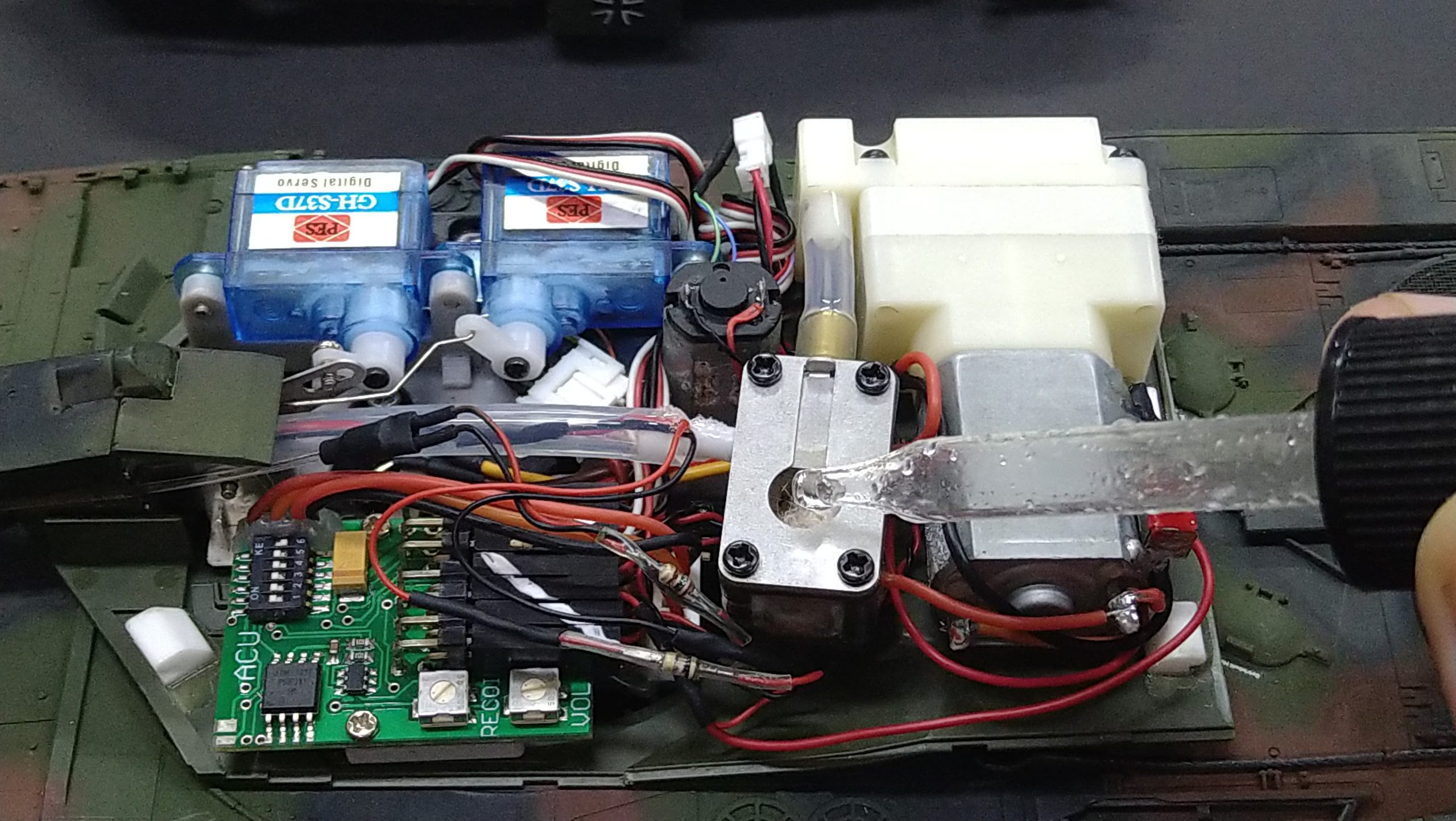

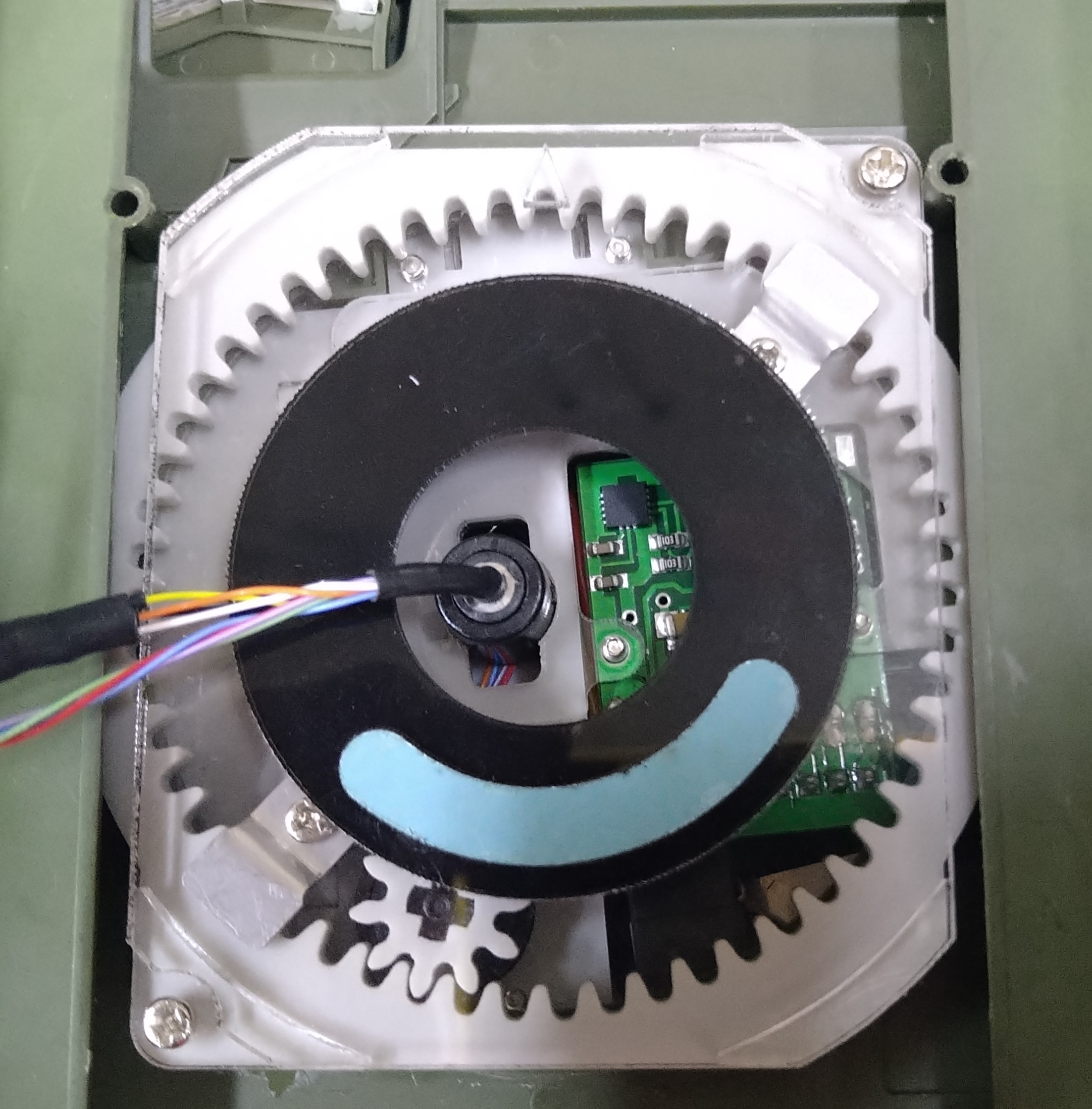

– Turret assembly with ACU, GSU, rotation motor, gun elevation and recoil servos, engine deck sensor, speaker
– Main gun and machine gun flash LEDs
– Turrer ring gear
– Metal parts: S2 with magnet

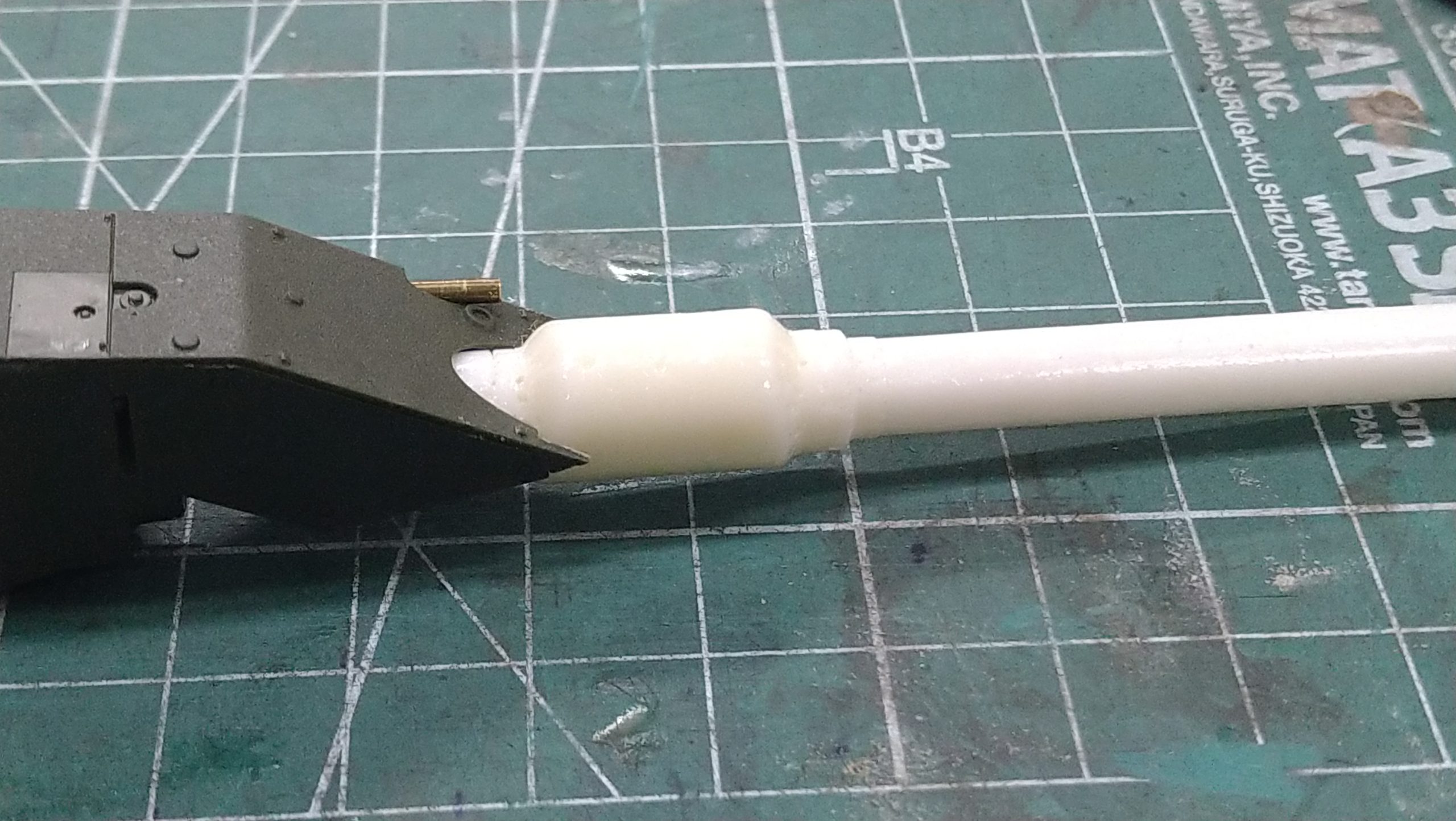

– Acrylic parts: A3 gun mantlet tube, MTC-2 mount
– 1mm PS plate
– MTC-2 power leads
– Detail construction manual
Following items are required but NOT included. You must purchase them separately:
– TAMIYA Leopard2A5/A6 kit
– RC transmitter and receiver (5CH, 4CH or 2 CH)
– 2 Cell Lipo battery and Lipo charger
– Metal tracks (optional)
Manuals:
RC Conversion Kit for TAMIYA 1/35 Leopard 2A5/A6 User Manual
MTC-2 and ACU User Manual
GSU User Manual
Attention:
This conversion kit is designed for experienced model maker which may be difficult for beginners. Please read the manual to see if you have the skill and tools required.
