RC Convesion Kit for Tamiya(Asuka) 1/35 Sherman Firefly

Sherman Firefly

Metal Gearbox

Metal Gearbox

VVSS Spring Plates

VVSS Spring Plates

Main Gun Recoil Unit

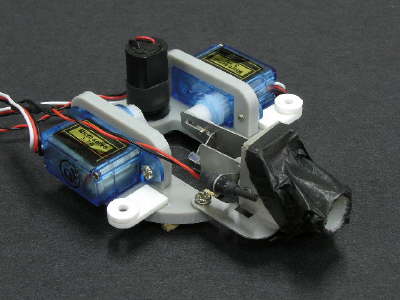

Turret Servos Assembly

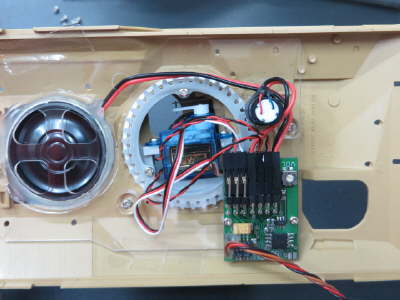

Turret Servos Assembly Installed

Main Gun LED

Machine Gun LED

Turret Rotation Servo and Speaker Assembly

Lower Hull Inside



K14 - RC Conversion Kit for Tamiya (Asuka) 1/35 Sherman Firefly, with MTC-2 and ACU

Price: US$149

Status: Out of Stock

Features:
- Gearbox design for all types of Sherman hulls
- Twin carbon brush motor with harden stainless steel gears
- Workable VVSS spring plates
- 360 deg turret rotation, gun elevation and recoil servos
- Ultra bright main gun LED and machine gun LED
- Main gun led will expose during recoil
- 22KHz high quality digital recorded sound effects, including engine start, running and stop sounds, main gun and machine gun firing sounds
- Engine sounds changes according to speed
- Powered by 4 AAA NiMH battery

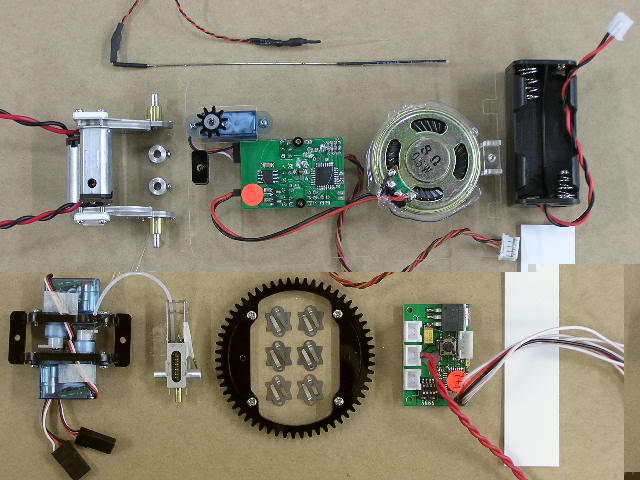

Kit contains:
- MTC-2 mini tank controller
- ACU auxiliary control unit
- Metal gear box with twin carbon brush motors
- Metal sprocket mounts
- VVSS spring plates
- Main gun recoil mechanism with gun elevation and recoil servos
- Main gun LED
- Machine gun LED
- Turret ring gear
- Turret rotation servo and speaker assembly
- 4 cell AAA battery case
- 1mm PS plate
- Detail construction manual

Following items are required but NOT included. You must purchase them separately:
- Tamiya (Asuka) 1/35 Sherman Firefly kit (Item no: 25174)
- RC transmitter and receiver (4CH or more recommended)
- 4 cell AAA NiMH battery

Manuals:
RC Conversion Kit for Tamiya (Asuka) 1/35 Sherman Firefly User Manual
MTC-2 and ACU User Manual

Related Product:
- MTC-2 mini tank controller
- ACU auxiliary control unit

Attention:
This conversion kit is designed for experienced model maker which may be difficult for beginners. Please read the manual to see if you have the skill and tools required.
